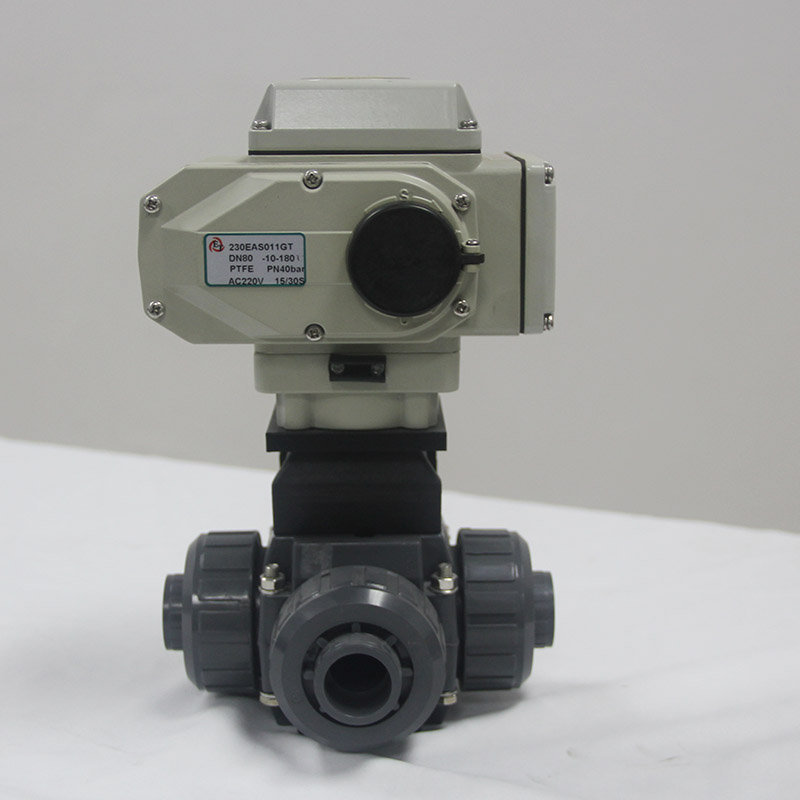

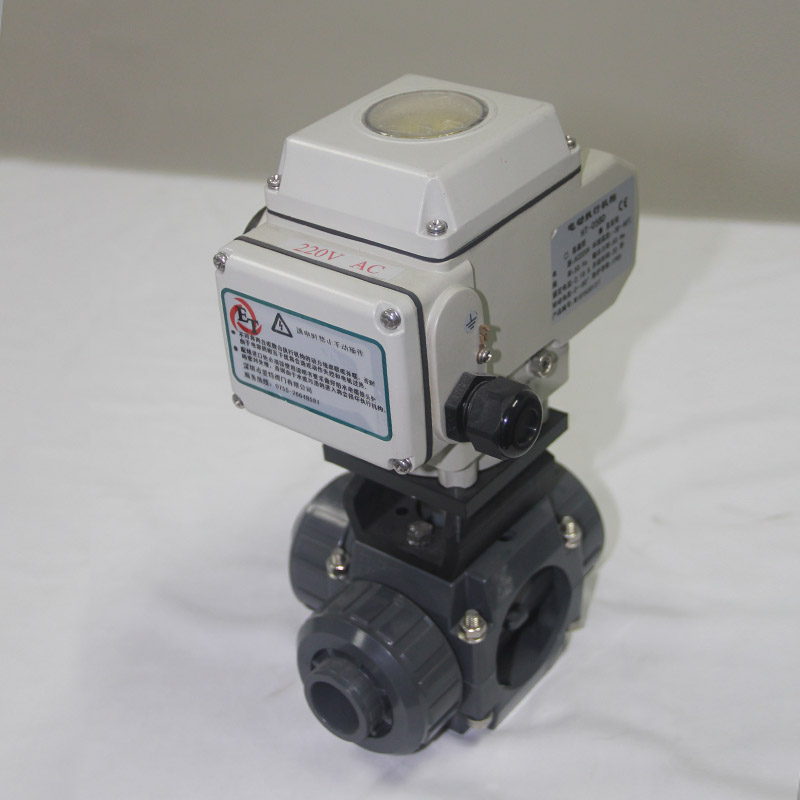

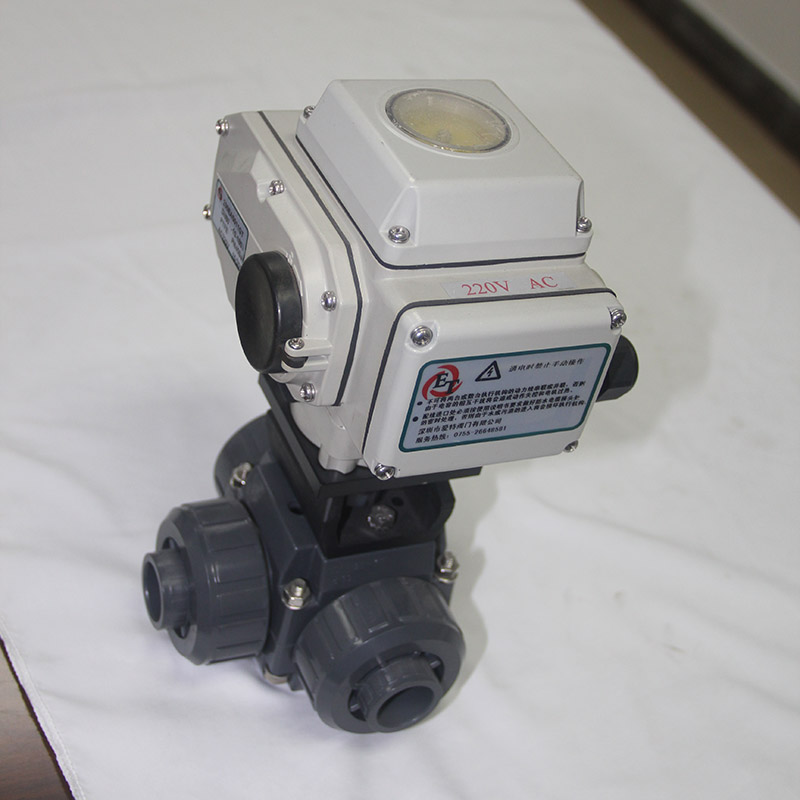

Elite valve electric three-way ball valve electric reversing DN50 electric three-way plastic ball valve T-type PVC adhesive thread ball valve
Elite valve electric three-way ball valve electric reversing DN50 electric three-way plastic ball valve T-type PVC adhesive thread ball valve
Diameter: dn50-dn50
Pressure range: 0-10bar
Medium temperature: - 10 ℃ - 85 ℃
Valve body material: PVC CPVC PP PVDF
Sealing material: EPDM FKM
Action form: single action or double action
Options: 1. Limit switch, 2. Positioner

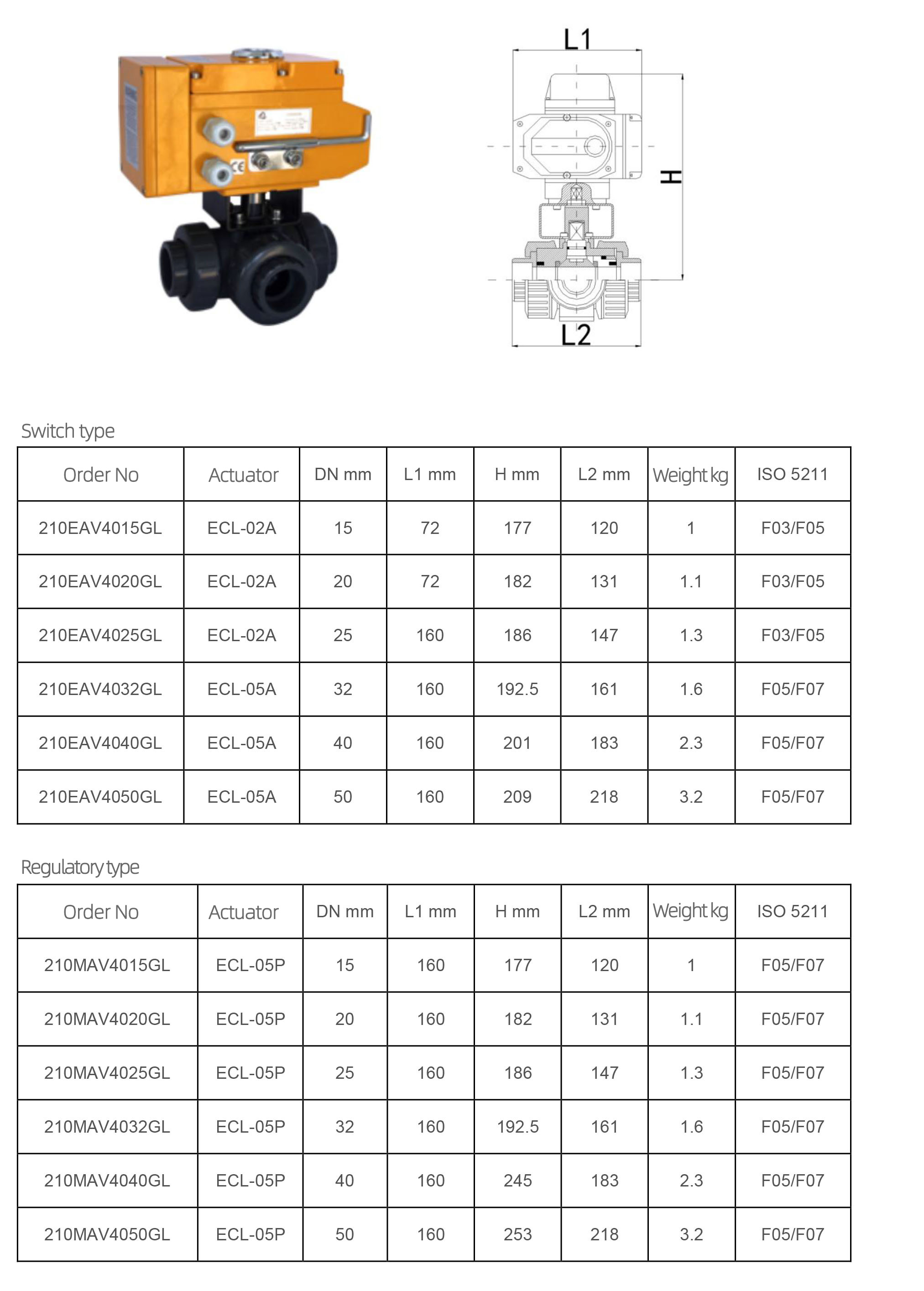

Technical parameter
Mounting dimensions
Model description
Product use
This product is suitable for agriculture, chemical industry, electroplating, environmental protection and other industries
Download
